FIXED INPUT, ISOLATED & UNREGULATED DUAL OUTPUT DC-DC CONVERTER     AxxxxSD-xW SERIES 1W ～2W SIP/DIP PACKAGE

FEATURES
◆ Small size,low cost
◆ SIPDIP Package
◆ SIP/DIP PACKAGE
◆ 1KVDC Isolation
◆Temperature Range -40°C ~ +85°C
◆ No Heat Sink Required
◆ Industry Standard Pinout
◆RoHS Compliance
◆ Input voltage: 3.3VDC/5VDC/12VDC/15VDC/24VDC
◆ Output voltage：±3.3VDC/±5VDC/±12VDC/±15VDC/±24VDC
◆ Product Power: 0.1 ~ 2W
◆ Product Accuracy: ± 5%

APPLICATIONS
AxxxxSD-xW Series are specially designed for applications where a single power supply is highly isolated from the
input power supply in a distributed power supply system on a circuit board.These products apply to
◆ Where the power supply system distribution , the digital circuit isolation and voltage conversion
◆Where provide dual voltage power supply to op-amp circuit.
◆Where the voltage of the input power supply is fixed (voltage variation ≤±10%)
◆ Where isolation is necessary between input and output (isolation voltage ≤1000VDC);
◆ Where the regulation of the output voltage and the output ripple and noise are demanded.

DATA DOWNLOAD:

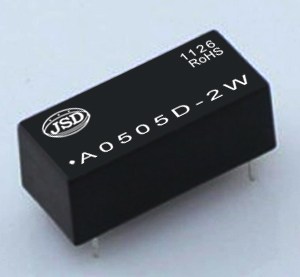

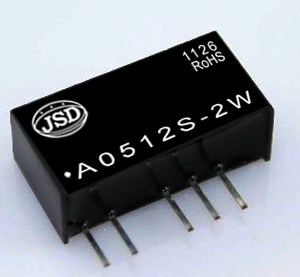

DC-DC CONVERTER PICTURE:
