Positive and negative analog signal isolation amplifier IC
Features:
◆ Low cost, small size, SIP Package meet UL94-V0 flame retardant standard
◆ No external potentiometer, no zero and gain adjustment
◆ Three-port isolation(input, output and power supply)
◆ Power supply: 5VDC, 12VDC, 15VDC, 24VDC etc.
◆ 0~75mV/0~5V/0~10V/0~±100mV/0~±10V/4~20mA/0~±20mA analog signal  transmission or amplification ,
◆ Industrial class operation temperature (-45~+85 ℃)
◆ High accuracy: 0.1%, 0.2%;
◆ High linearity (non-linearity <0.1%)
Applications:
◆ DC current/voltage signal isolation, conversion and amplification
◆ Industrial field signal isolation and Remote lossless transmission
◆ Analog signal ground interference suppression
◆ 4~20mA/0~±20mA/0~±10V/sensor signal isolation and conversion, can achieve single-input dual-output, single input and three output, dual-input dual-output, three input and three output signal isolation functions, etc.
◆ instrumentation and sensor signal transceiver
◆ power isolation and control of industrial site
◆ power monitoring, medical equipment isolation barrier
Description：
     Jie Sheng Technology JSD MI-V (I)-P-V(I)O series isolation amplifier is a magnetic isolation hybrid integrated circuit, the isolation amplifier module front stage is the voltage (current) signal input, Backend is a current (voltage) signal output, Integrated on the same chip a multi -isolated micro-power supply to the internal signal processing circuitry, make the chip achieve three-port isolation(input, output and power supply),and the isolation voltage between them is up to 2500 VDC, The module uses electromagnetic isolation technology, compared with  Optical isolation technology has better temperature drift and linearity.  can adapt Industrial class operation temperature, Operation in the wet and shaking harsh environments.
Download :

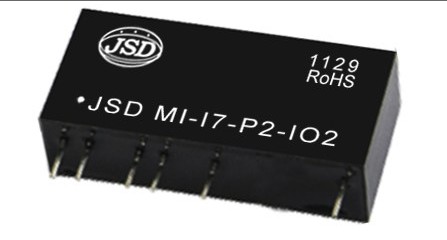

Picture：

selection example：
example1：signal input：0-5V；signal output：0-10V； power supply：5VDC；model：JSD MI-V1-P4-VO5
example 2：signal input：4-20mA；signal output:4-20mA；power supply：24VDC；model：JSD MI-I4-P1-IO1
